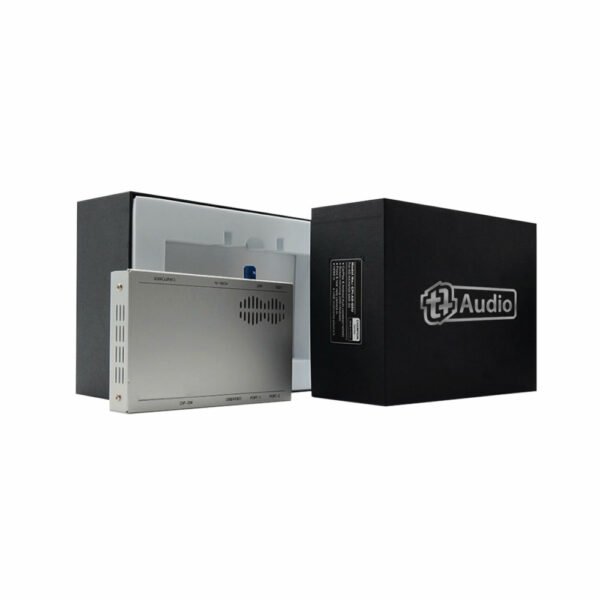

MINI CarPlay & Android Auto Interface

Specifications

Compatibility:

• iDrive NBT (high CIC) & NBT-EVO ID4 head unit with 6.5 / 8.8 / 10.25 inch OEM monitor (6 pin LVDS connector)
• iDrive EVO ID5 & ID6 head unit with 6.5 / 8.8 / 10.25 inch OEM monitor (6 pin LVDS connector):
  Note. OEM touch will not work on the add-on interface.

Multimedia Interface I/O Spec:
Input: RCA*2 (front & rear view camera), HDMI*1 (720P), 3.5mm jack female*1 (add on microphone), HSD*1 (LVDS)
Output: HSD*1 (LVDS), Fakra*1 (WiFi & BT antenna), 3.5mm jack male*1 (audio L/R)

Power Spec:
Input power: 9V-16V
Consumption: 6W

Optional Components (sold separate):
External microphone (Needed when a car without OEM MIC)
